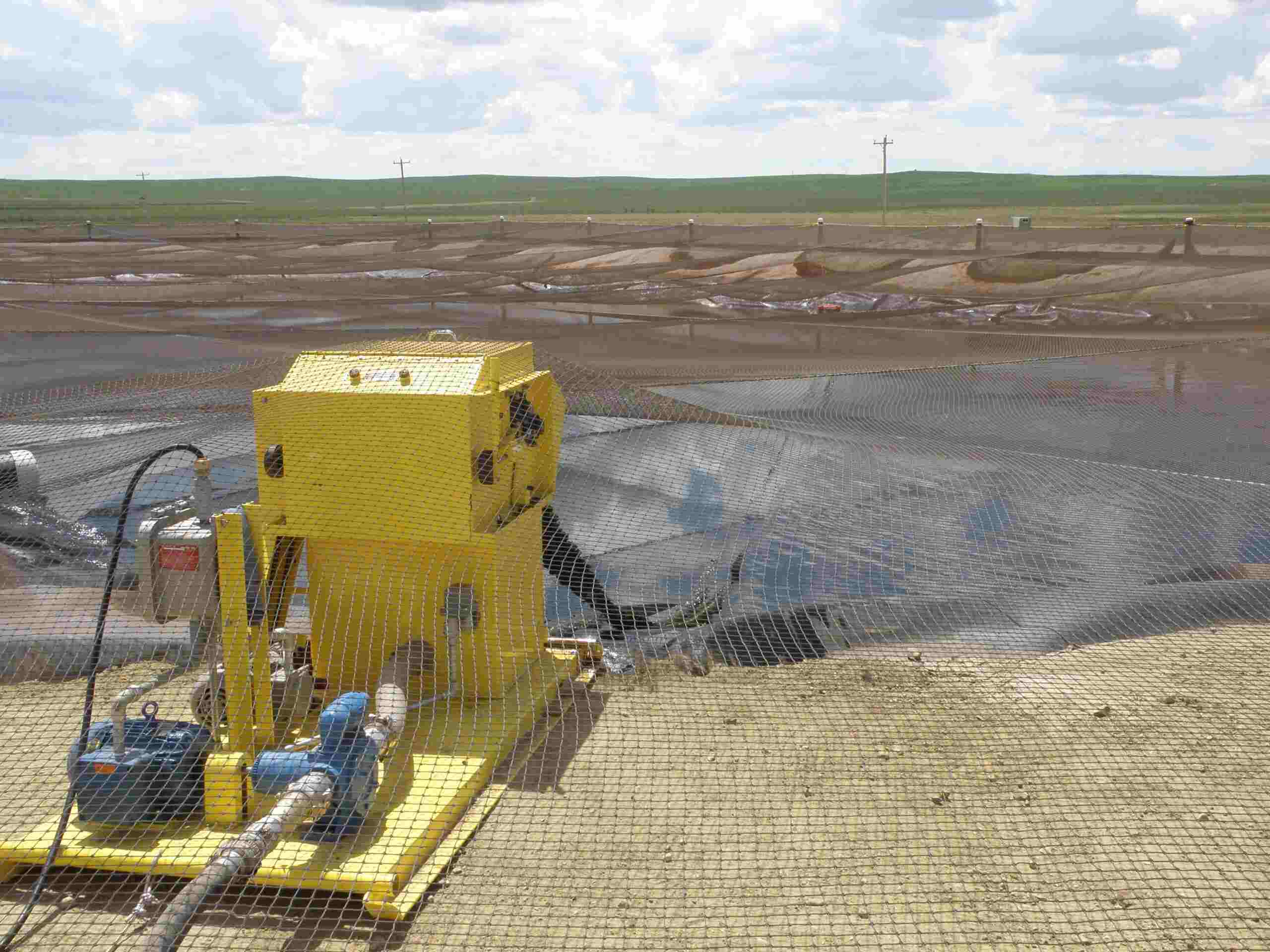

W26 or W29-Series Rope-Mop Skimmers
These are versatile, medium-size rope-type oil skimmers that are completely self-contained, with rope wringer, motor, and transfer pump. The skimmers use Petro Mop oleophilic rope to effectively reclaim all types of oils. Installation requires at least one Floating Return Pulley.
The larger W29 has a higher capacity.
Features
- Pick up all oils: crude, refined, animal, and vegetable
- Unaffected by ice, flotsam, and debris
- Ideal for canals, settling ponds, lakes, and API separators
- Simple and reliable
- Diesel or electric drive
- Optional transfer pump for reclaimed oil
- Skid-mounted or trailer-mounted
- Easy to rig up for quick spill response
W26 Skimmer Specifications – Air-Cooled Diesel Drive
| Model | Mop size in (cm) | Engine output hp (kW) | Pump type | Pump Size in (mm) | Total discharge head ft (m) | Pump rating, bbl/hr (m3/hr) | Shipping weight lb (kg) |
|---|---|---|---|---|---|---|---|
| W26-D | 6 (15.2) | 5 | – | – | – | – | 900 (408.2) |
| W26-DPC1.5 | 6 (15.2) | 6 (4.5) | Centrifugal | 1.5 x 1.5 (38.1 x 38.1) | 70 (21.3) | 240 (38.2)* | 1,250 (567.0) |
| W26-DPT2.5 | 6 (15.2) | 6 (4.5) | Lobe | 2 x 2 (50.8 x 50.8) | 230 (70.1) | 136 (21.6)** | 1,600 (725.7) |
Note: All engines are electric start and include battery boxes. Batteries not included.
* At 32 SSU
** At 5,000 SSU
W26 Skimmer Specifications – Electric 230/460V, 3 Phase, 60 Hz
| Model | Mop size in (cm) | Drive rating hp (kW) | Pump type | Pump rating hp (kW) | Pump Size inlet x outlet in (mm) | Total discharge head ft (m) | Pump capacity, bbl/hr (m3/hr) | Shipping weight lb (kg) |
|---|---|---|---|---|---|---|---|---|
| W26-EH | 6 (15.2) | 2 (1.5) | – | – | – | – | 900 (408.2) | |
| W26-EHPC1.5 | 6 (15.2) | 2 (1.5) | Centrifugal | 3 (2.24) | 1.5 x 1.5 (38.1 x 38.1) | 60 (18.3) | 30 (4.8)* | 1,100 (499.0) |
| W26-EHPM1.5 | 6 (15.2) | 2 (1.5) | Prog cavity | 2 (1.5) | 1.25 x 1.5 (31.8 x 38.1) | 110 (105.4) | 27 (4.3)* | 1,300 (589.6) |
| W26-EHPT2.5 | 6 (15.2) | 2 (1.5) | Vane | 5 (3.7) | 2.5 x 2.5 (63.5 x 63.5) | 230 (51.2) | 62 (9.9)*** | 1,425 (646.4) |
Electric units include a float switch for on/off operation. All electric units are explosion proof : NEC Class 1, Group D, Division 2.
* At 32 SSU
** At 5,000 SSU
W29 Skimmer Specifications – Air-Cooled Diesel Drive
| Model | Mop size in (cm) | Engine output hp (kW) | Pump type | Pump Size in (mm) | Total discharge head ft (m) | Pump rating, bbl/hr (m3/hr) | Shipping weight lb (kg) |
|---|---|---|---|---|---|---|---|
| W29-D | 9 (22.9) | 6 (4.5) | – | – | – | – | 1,600 (726) |
| W29-DPC3 | 9 (22.9) | 16 (11.9) | Centrifugal | 3 x 3 (76.2 x 76.2) | 60 (18.3) | 240 (38.2) | 2,200 (998) |
| W29-DPT2.5 | 9 (22.9) | 16 (11.9) | Lobe | 2.5 x 2.5 (63.5 x 63.5) | 170 (51.8) | 136 (21.6) | 2,300 (1,043) |
W29 Skimmer Specifications – Electric 230/460V, 3 Phase
| Model | Mop size in (cm) | Drive rating hp (kW) | Pump type | Pump rating hp (kW) | Pump Size inlet x outlet in (mm) | Total discharge head ft (m) | Pump capacity, bbl/hr (m3/hr) | Shipping weight lb (kg) |
|---|---|---|---|---|---|---|---|---|
| W29-EH | 9 (22.9) | 2 (1.5) | – | – | – | – | – | 1,800 (816) |
| W29-EHC3 | 9 (22.9) | 2 (1.5) | Centrifugal | 7.5 (5.6) | 3 x 3 (76.2 x 76.2) | 60 (18.3) | 240 (38.2) | 2,350 (1,066) |
| W29-EHPM3 | 9 (22.9) | 2 (1.5) | Prog cavity | 7.5 (5.6) | 3 x 3 (76.2 x 76.2) | 346 (105.4) | 107 (17.0) | 2,800 (1,270)) |
| W29-EHPV2.5 | 9 (22.9) | 2 (1.5) | Vane | 7.5 (5.6) | 2.5 x 2.5 (63.5 x 63.5) | 168 (51.2) | 136 (21.6) | 2,700 (1,225) |
| W29-EHPT2.4 | 9 (22.9) | 2 (1.5) | Lobe | 7.5 (5.6) | 2.5 x 2.5 (63.5 x 63.5) | 170 (51.8) | 136 (21.6) | 2,700 (1,225) |
