Shoreline Barriers for Oil Spills

Shoreline Containment Boom

ABASCO Shoreline Barrier effectively contains oil spills in shallow water areas, such as shorelines, swamps, marshes and river banks. The barrier is especially effective in areas with fluctuating tides. The barrier consists of two water-filled tubular bladders running side-by-side the length of the barrier. On top of these bladders is a third, air-filled tubular bladder. In very shallow water the barrier rests on the bottom, preventing oil from seeping underneath the barrier. In water deeper than the height of the bottom bladders, the barrier floats, with the top air-filled bladder out of the water, and functions like a conventional boom.

Shoreline Oil Boom Configurations

Overall height, in (mm) 20 (508) 28 (712)
Freeboard, in (mm) 10 (254) 14 (356)
Draft, in (mm) 10 (254) 14 (356)
Air and water chamber diameter, in (mm) 12 (305) 16 (406)

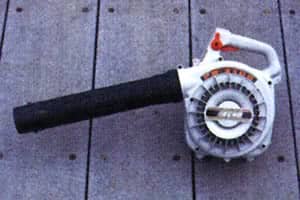

AIRBOOM Inflator

Hand-held, 2.3-hp inflator is used to inflate ABASCO AIR Boom or temporary oil-storage tanks. Large-capacity fuel tank for longer operating time. A backpack model is also available.

Want to learn more about containment booms?

Case Studies

Project Overview
Construction sediments were contained within designated work zones during seismic and hydraulic upgrades at three reservoirs originally built in 1888. The project included demolition, installation of new tunnel liners, and the refurbishment or replacement of water management infrastructure. Frequent barge traffic was accommodated while maintaining water quality through the use of 9,150 feet of tapered Type 3 HD turbidity curtains.
Location
Upper & Lower Crystal Springs & San Andreas Reservoir, San Mateo County, California
Abasco Contribution
Product Design: manufacture & installation support
Project Overview
Contaminated sediments generated during hydraulic dredging were contained within multiple work zones using 3,400 feet of double-walled Type 3 HD turbidity curtains to effectively control and manage site turbidity.
Location
Northeast River
Abasco Contribution
Turbidity curtain design: manufacture and installation support
Looking for customizations?

Request a Custom Quote

To request a custom quote, please give us a call or fill out our form and an ABASCO representative will reach out to you soon.
